Client Server Architecture

Clients and servers are separate. The client asks for data or actions, and the server responds. All types of clients make similar requests and get similar responses.

M

Mann

nextjsreactweb development
Client Server Architecture

Client Server Architecture

Overview

  • •Client: The user's device or app (browser, mobile app, desktop app, TV, etc.)
  • •Server: The backend system (APIs, databases, business logic)

Clients and servers are separate. The client asks for data or actions, and the server responds. All types of clients make similar requests and get similar responses.

Usually, there are multiple frontend teams (for different clients) and one backend team.

Why This Works Well

  • •Clear separation between frontend and backend
  • •Clients and servers can be updated independently
  • •One server can handle requests from many clients

Stateless Protocol

A stateless protocol means:

[!NOTE] Each request is independent. The server does not remember previous requests.

Benefits

  • •Simpler server design
  • •Easier to scale (add more servers)
  • •No need to store session data on the server

If you need to remember things:

  • •Store data on the client (cookies, JWT)
  • •Use a database or cache (like Redis)

Request-Response Cycle

This is how clients and servers communicate:

  1. •Client sends a request (GET, POST, etc.)
  2. •Server receives the request, processes it, and may access a database
  3. •Server sends back a response (JSON, HTML, etc.)

Example:

GET /api/users/123

API Gateway Pattern

An API gateway is a single entry point for all client requests. It sits in front of your backend or microservices and manages incoming requests.

Instead of:

without api gateway
without api gateway

you can do:

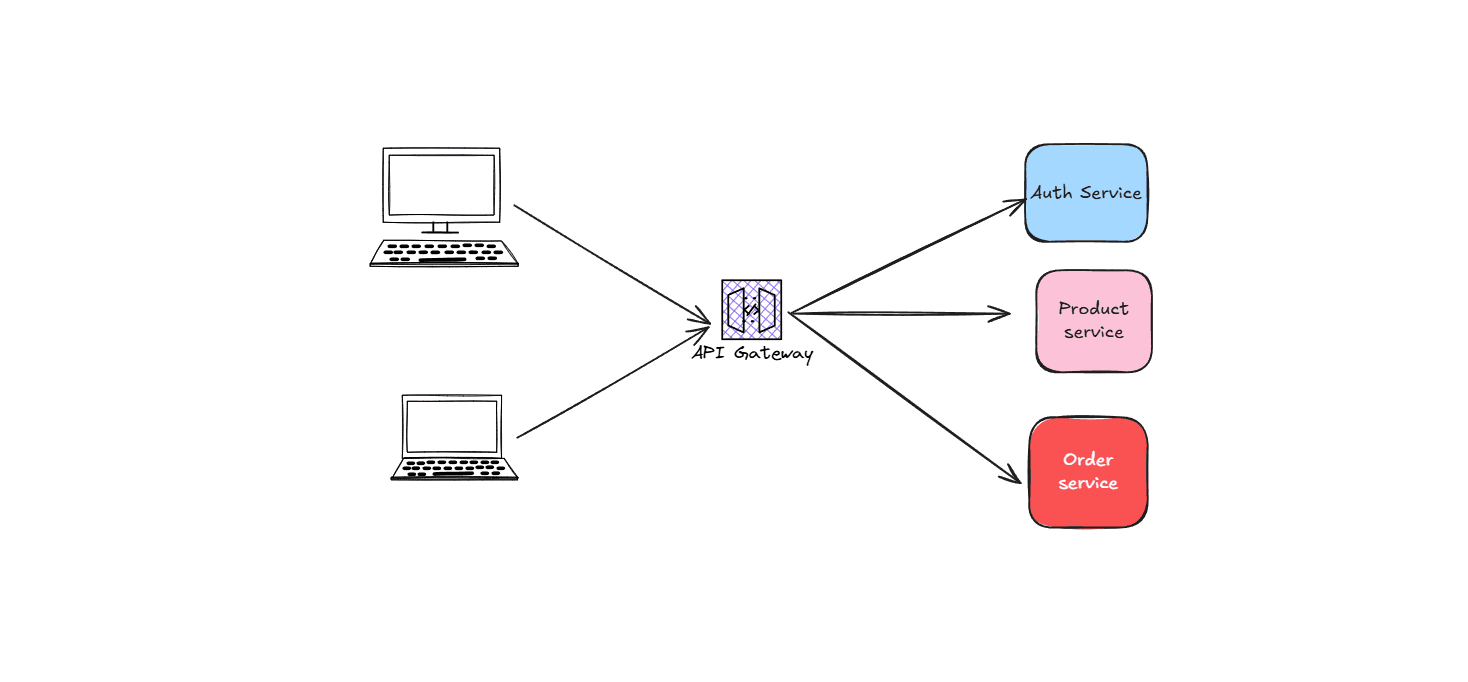

with api gateway
with api gateway

Why its important

  • •Central Place for Auth, Logging, Rate limiting
  • •Can aggregate multiple microservices into one response
  • •Helps in versioning , Routing , throttling

Popular gateway

  1. •Nginx
  2. •traefik (golang)
  3. •AWS API Gateway
  4. •Express Gateway

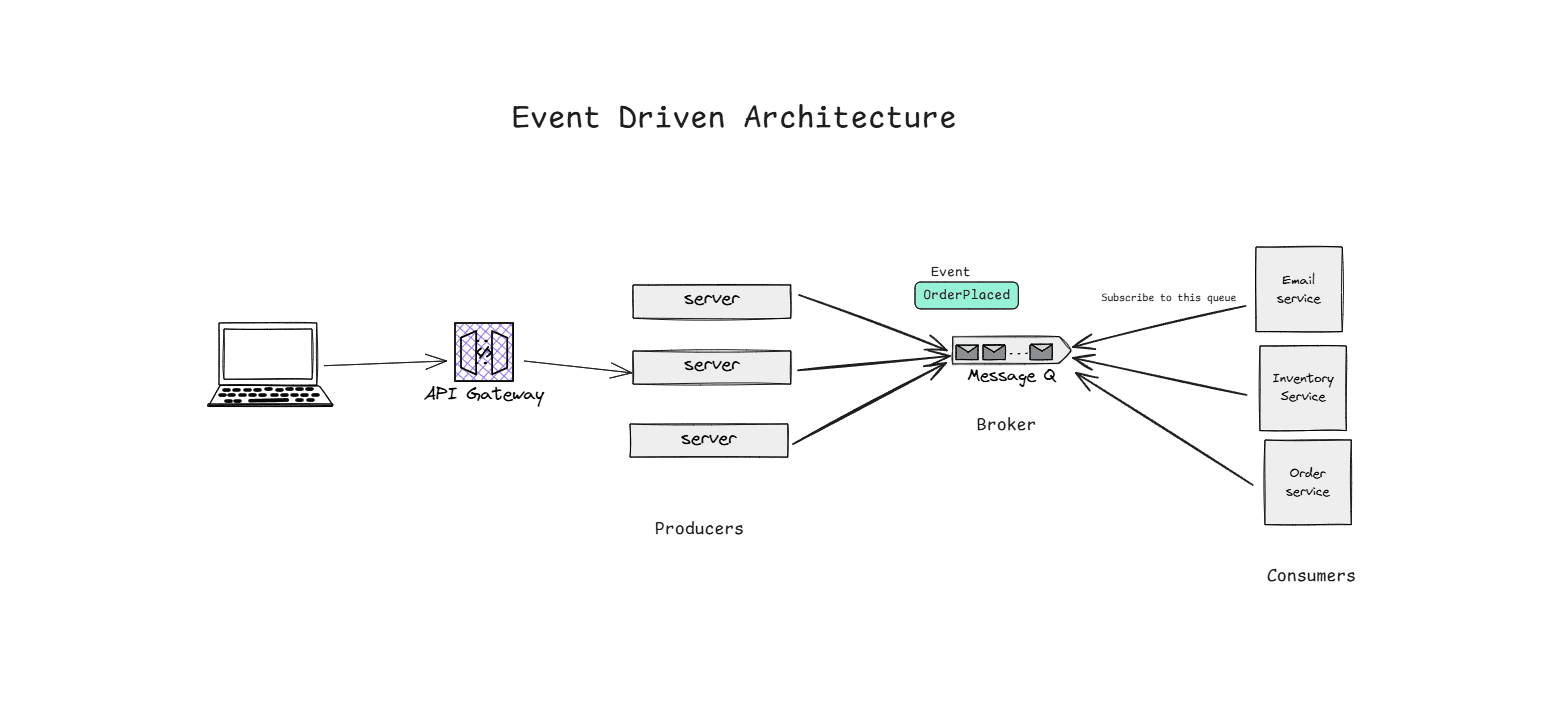

Event driven Architechture EDA

Event Driven Architechture
Event Driven Architechture

Event driven architecture is a software design pattern that allows decoupled applications to asynchronously publish and subscribe to an events through and event broker

What is an "Event"?

A Event is a change state , where an event driven architecture , everthing that happens in the architecture like ("user clicked", "inventory Updated", "thumbnail Updated","sensor reading comes to and specific temperature then fire an event ") these are the example of events

Core Idea

  • •Something happens - That's an Event
  • •Someone (service) Emits it
  • •Other services Listen and React

Components

| Part | What it does | Example | | ------------ | ------------------------------- | ------------------------------------ | | Event | A fact, something that happened | UserSignedUp, OrderPlaced | | Producer | Publishes events | Auth service says: “New user joined” | | Consumer | Listens and reacts to events | Email service sends welcome mail | | Broker | Delivers messages to listeners | RabbitMQ, Kafka, Redis Streams |

Why use EDA?

  • •Loose coupling (services don't need to know each other)
  • •Scalable
  • •Async & Resilient (events can be queued if things go down temporarily)

Disadvantages

  • •Debugging is harder
  • •Can get messy if there are too many events

Common tools

  • •Message Brokers: kafka,RabbitMq,Redis Pub/Sub,Amazon SQS/SNS
  • •Pub/Sub: Socket.io, EventEmitter (Node), Go channels (Golang)
